Low Pass Filter 9GHz Pass-band revA

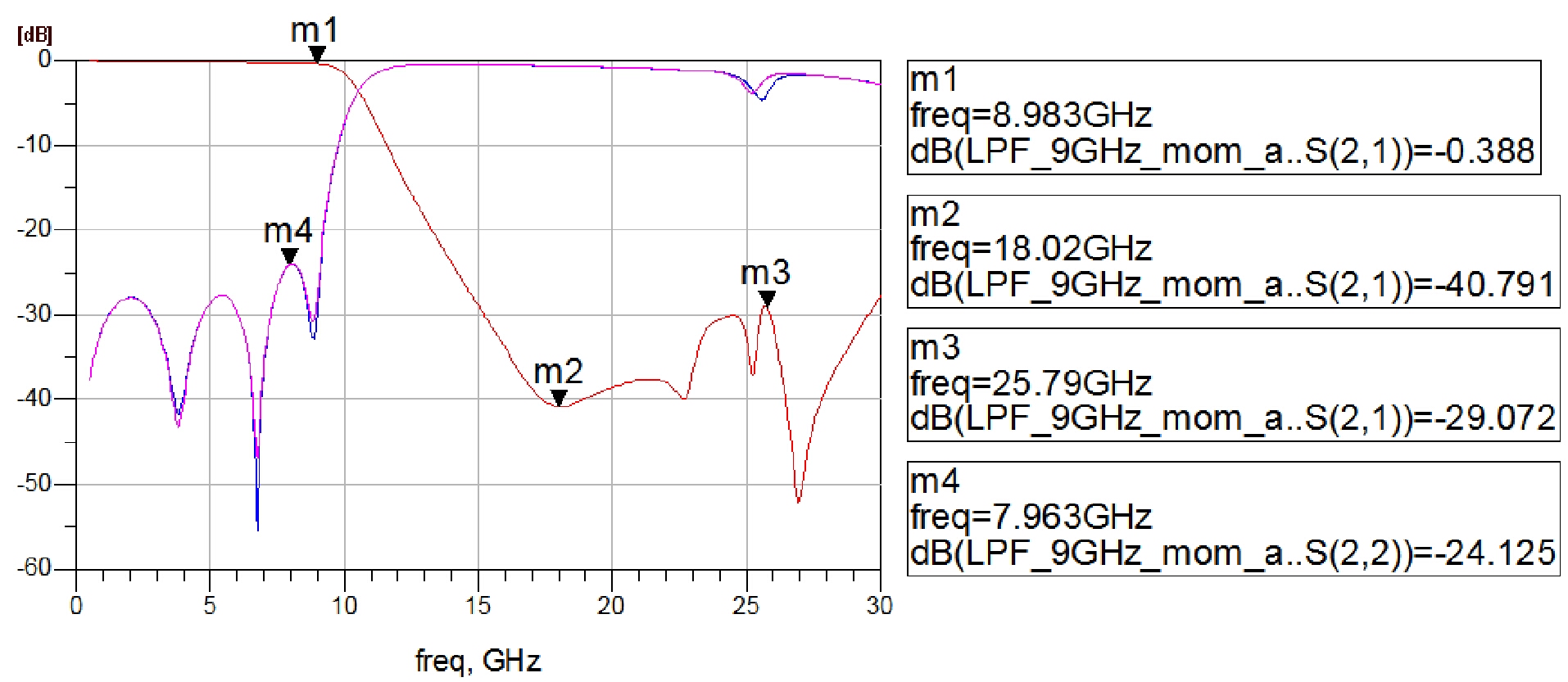

| Parameter | Min | Typ | Max | Units |
|---|---|---|---|---|
| IL@9GHz | 0.6 | 1 | dB | |
| IL@18GHz | 35 | dB | ||
| IL@27GHz | 20 | dB | ||
| RL in-band | -20 | dB | ||
| Power Handling | 5 | W | ||

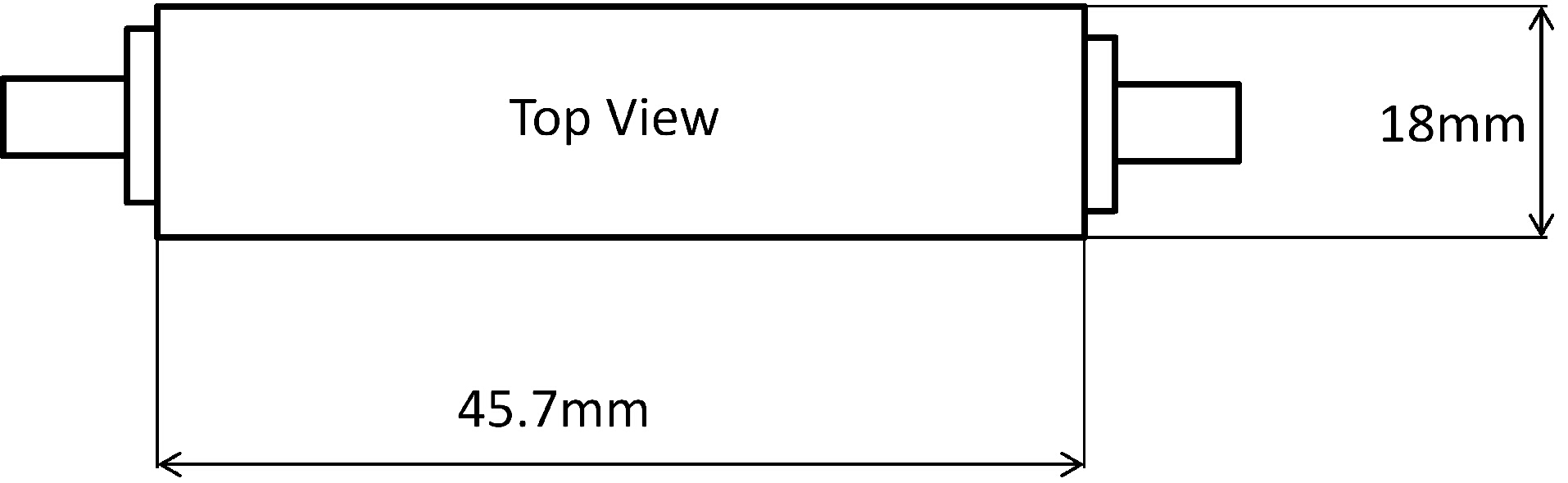

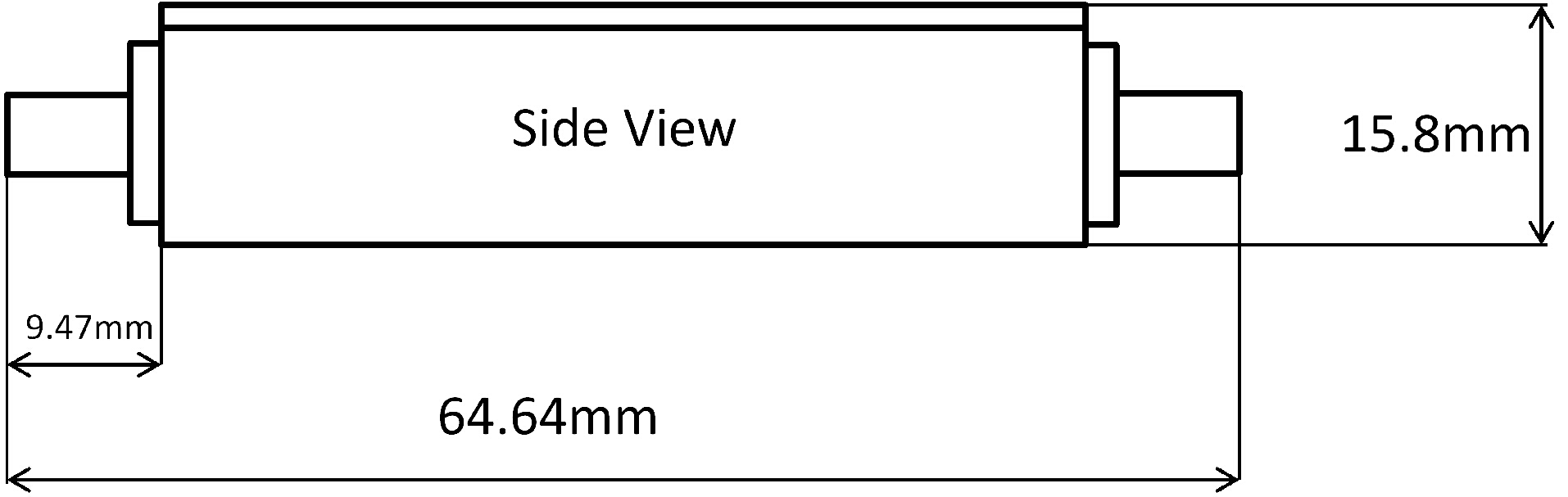

| Dimensions | 45.7x18x15.8 | mm^3 | ||
| Operating Temp. | -30 | 25 | 85 | C° |
