New Line of TCXO
GED completed development of the test and calibration system for high stability TCXO. Unique "All in One" calibration
algorithm shortening lead time and increasing production volume for newly developed TCXO with frequency range 10.0-125.0MHz and Phase-noise down
to -120dBc@100Hz offset.
|
|
Application
- Cellular
- VSAT
- Satcom
- Local Oscillator
- Test Equipment
General Specifications
| Frequency Range: | 100 MHz to 7000 Mhz |
| Frequency bandwidth: | Up to 40% |
| Output Power: | +10 dBm ±3 dB |
| Frequency Resolution: | 12.5 KHz up to 2 MHz |
| Harmonic: | -30 dBc Typical |
| Spurious: | -65 dBc Typical |
| Phase Noise: | -125 dBc/Hz @ 100 KHz Offset Typical |
| Settling time: | 0.5ms Typical |
| Reference In: | Internal or External |
| Reference Out: | 0 dBm Min. |
| Frequency Accuracy: | Depended on the reference frequency |
| Power Supply: | +5VDC, or 5VDC and +15 VDC |
| Auxiliary Supply Voltage: | +24 VDC (Optional) |
| Power Consumption: | 3 Watts Max |
| Operating Temperature: | -20 to +70° C |
| Control: | Three wire serial, DB9 Male Connector |

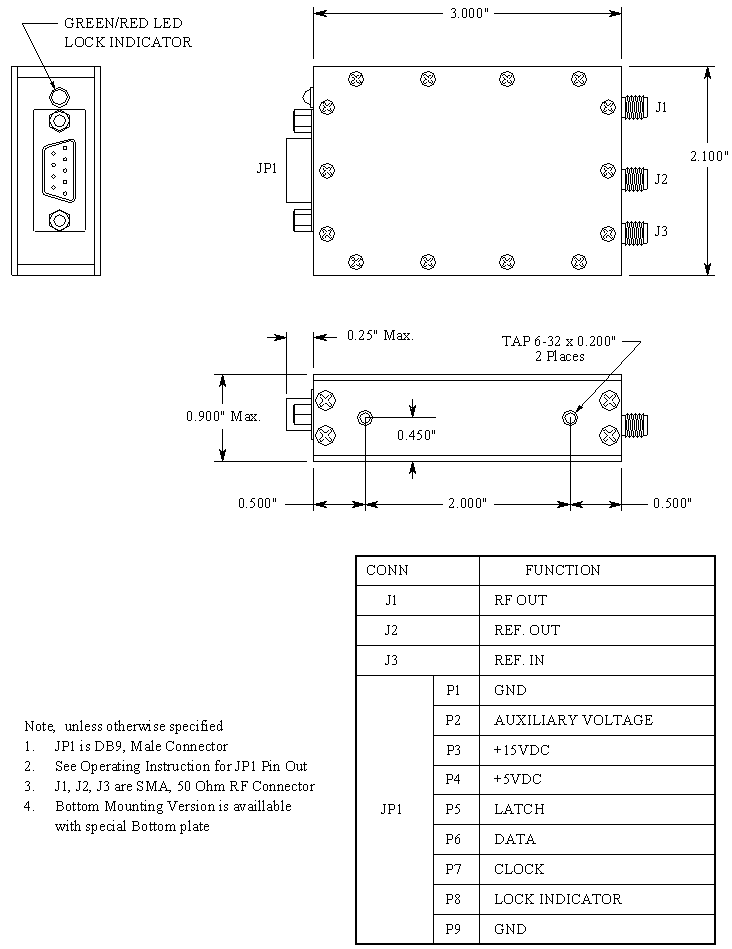

| Package: | 2.1" x 3.0" x 0.9" Metal Housing |
|
