New Portable Signal Generator
GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully
PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile.
This is the newest member of our diverse family of frequency sythesizers.
|
|
Application
- Cellular
- VSAT
- Satcom
- Local Oscillator
- Test Equipment
General Specifications
| Center Frequency Range: | 100 MHz to 8000 MHz |
| Frequency Select: | Any Two Frequencies within ±8% of Center Frequency |
| Output Power: | +10 dBm Typ. |
| Output Flatness: | ±3 dB |
| Harmonic: | -25 dBc Typ. |
| Spurious: | -70 dBc Typ. |
| Phase Noise @ 2GHz: | -95 dBc/Hz Typ. @ 10 KHz Offset (see note) |
| Reference Frequency: | Internal or External 10 MHz |
| Frequency Accuracy: | Depends on Reference Frequency |
| Reference Out: | 0 dBm Typ. |
| Programming: | Toggle Switch |
| DC Supply: | +12VDC @ 400mA Max. |
| Operating Temperature: | -20 to +70° C |

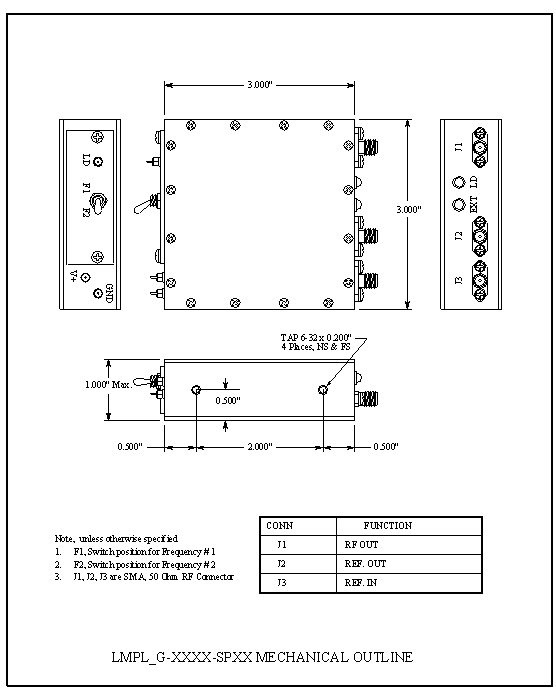

| Package: | 3.0"(76.2mm)x 3.0"(76.2mm)x 1.00"(25.4mm) Metal Housing |
| RF in/out Connector: | SMA Female |
| Notes: Phase noise depends on selected frequencies and spurious specifications. |
|
