Surface Mount Frequency Synthesizer: LMPL_H

New Portable Signal Generator

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Search GED www


  • Cellular
  • VSAT
  • Satcom
  • Local Oscillator
  • Test Equipment

General Specifications

Frequency Range:100 MHz to 7000 Mhz
Frequency bandwidth:Up to 40%
Output Power:+10 dBm ±3 dB
Frequency Resolution:12.5 KHz up to 2 MHz
Harmonic:-30 dBc Typical
Spurious:-65 dBc Typical
Phase Noise:-125 dBc/Hz @ 100 KHz Offset Typical
Settling time:0.5ms Typical
Reference In:Internal or External
Reference Out:0 dBm Min.
Frequency Accuracy:Depended on the reference frequency
Power Supply:+5VDC, or 5VDC and +15 VDC
Auxiliary Supply Voltage:+24 VDC (Optional)
Power Consumption:3 Watts Max
Operating Temperature:      -20 to +70° C
Control:Three wire serial, DB9 Male Connector
Package:2.1" x 3.0" x 0.9" Metal Housing

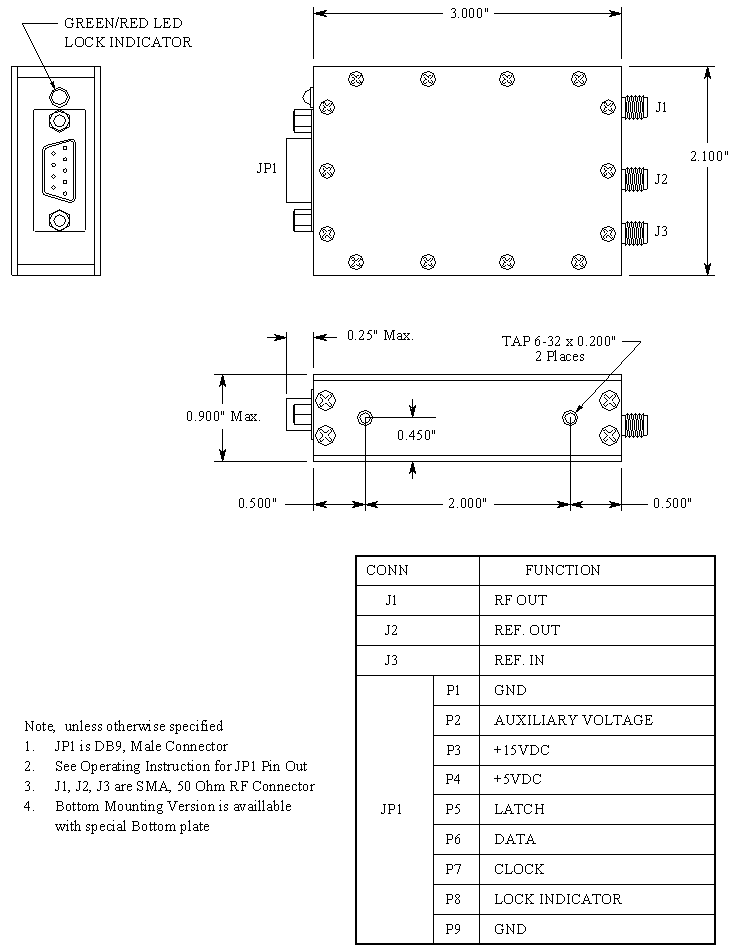

LMPL-H Package Information
