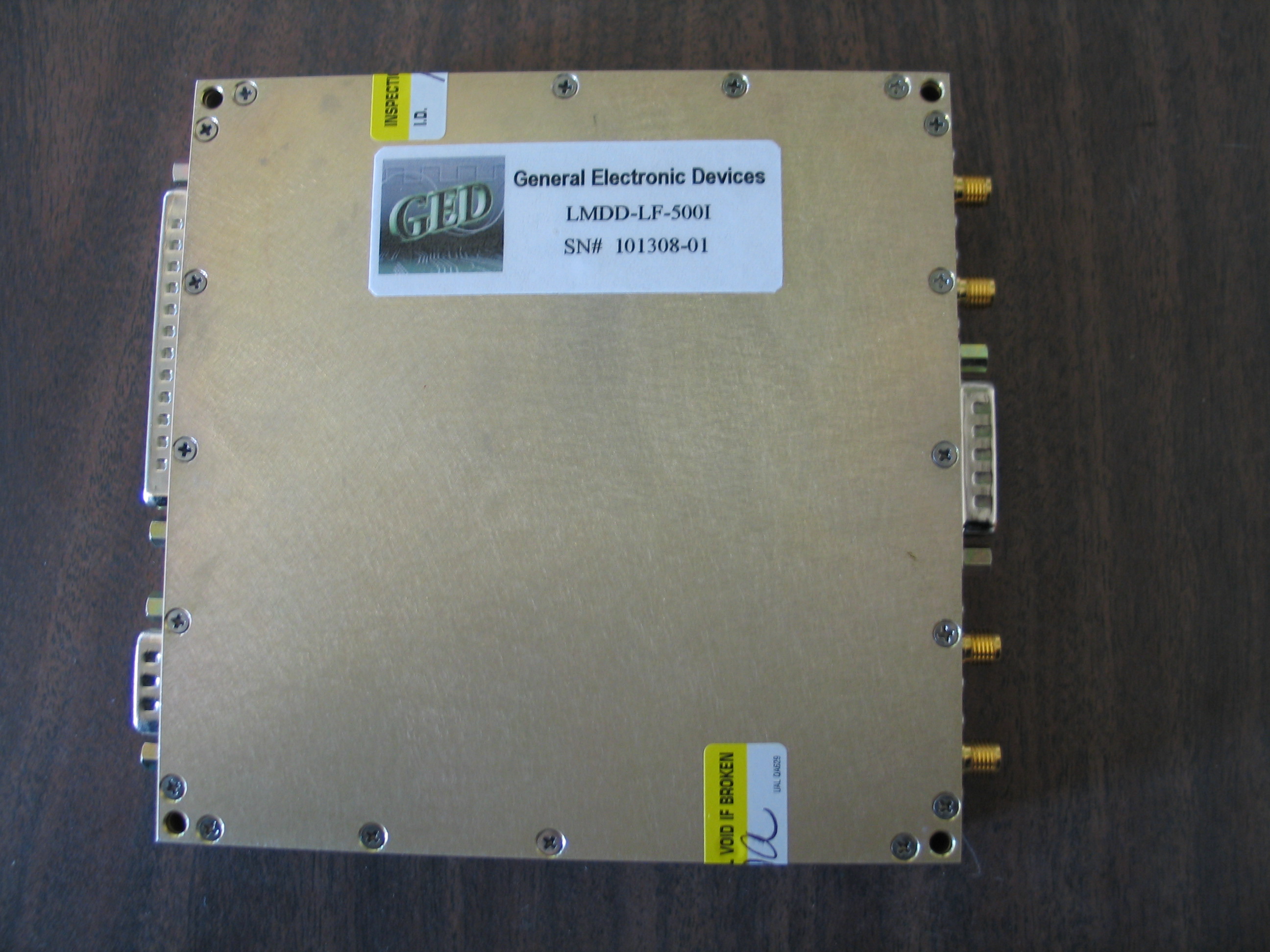

DDS Frequency Synthesizer: LMDD_LF_5001_01

New Portable Signal Generator

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Google
Search GED www

Product Features

  • DDS
  • Output Frequency from 10MHz to 500MHz
  • Compliment Outputs (Option)
  • Serial or Parallel control (Option)
  • < 0.5 Hz Frequency Resolution
  • External or Internal clock (Optional)
  • Fast Switching
  • Spurious <-45 dBc
  • Single Supply +5VDC @ 300mA and -5VDC @ 800mA
  • SSB Phase Noise @ 100MHz Output: <-100 dBc at 1kHz Offset

General Specifications

Main Output
Frequency Range: 10MHz to 500MHz
Resolution(Step Size): <0.5 Hz
Output Power:+3 dBm ±3 dB
Harmonic:-20 dBc Typ.
Spurious:-45 dBc Typ.
Phase Noise @ 100MHz Output(Internal Ref.):-100dBc/Hz @ 1 KHz Offset
Frequency Accuracy:Depends on reference input
DC Supply:+5VDC @ 300mA Max and -5VDC @ 800mA typ.
Auxiliary Output
Frequency:10 MHz Fixed
Output Power:>+3 dBm
Reference Input
Frequency:10MHz(±1ppm)
Control Interface
Frequency Control:Parallel 31 Bit
Phase Control:Parallel 11 Bit
Mechanical and Environmental
Operating Temperature:-10 to +60° C
Storage Temperature:-20 to +85° C
Package:5.00"x 5.00"x 1.25" Metal Housing
Main Out: SMA Female
Auxiliary Out: SMA Female, 10MHz
Ref. In:SMA Female
Frequency CNTRL:DB-37 Male
Phase CNTRL:DB-15 Male
DC Supply:DB-9 Male
LMDD_LF_0400_01 LMDD Package Information
