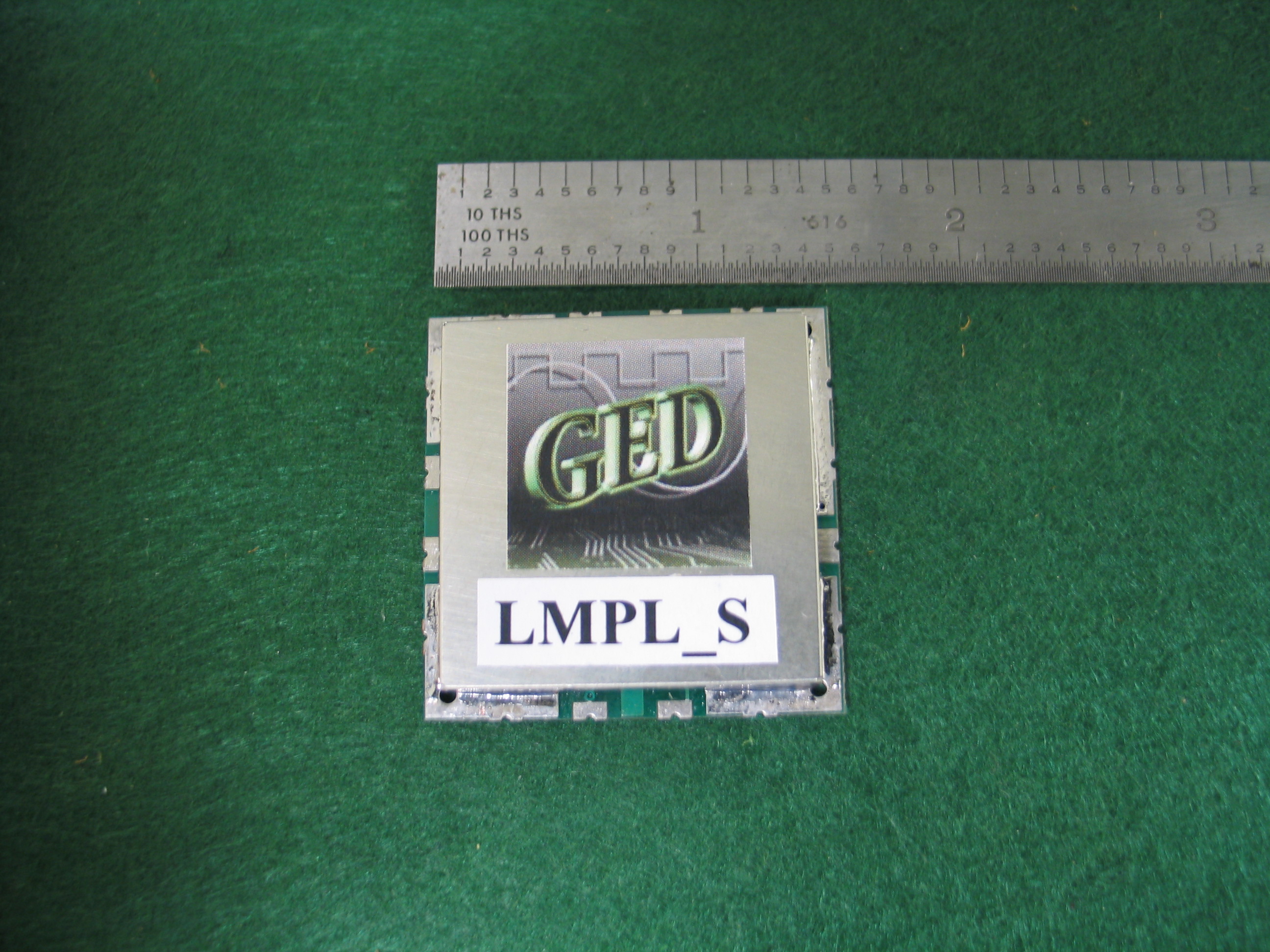

Surface Mount Frequency Synthesizer: LMPL_S

New Portable Signal Generator

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Google
Search GED www

Application

  • Wide Frequency Range
  • Surface Mount Package
  • High Harmonic Rejection
  • Internal or External Reference
  • Three-wire Frequency Control

General Specifications

Frequency Range:100 MHz to 8000 Mhz
Frequency bandwidth:Up to 40%
Output Power:+10 dBm ±3 dB
Frequency Resolution:12.5 KHz up to 10 MHz
Harmonic:-30 dBc Typical
Spurious:-65 dBc Typical
Phase Noise @ 2GHz:-110 dBc/Hz @ 100 KHz Offset Typical
Settling time:0.5ms
Reference Frequency:Internal or External up to 100 MHz
Frequency Accuracy:Depends on reference frequency
Reference Out:0 dBm min.
Power Supply:+5VDC @ 100 mA and +15VDC @ 15 mA
Operating Temperature:      -20 to +70° C
Control:Three wire serial
Package:1.5" x 1.5" x 0.25" Surface Mount

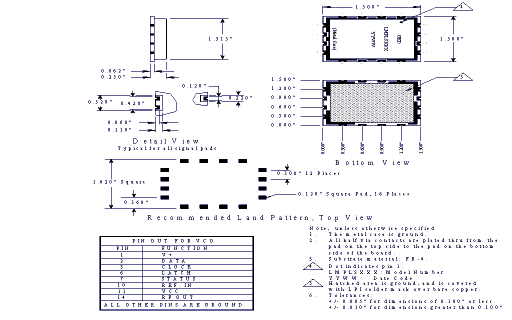

LMPL-G Package Information LMPL-S Package Information
