New Line of TCXO
GED completed development of the test and calibration system for high stability TCXO. Unique "All in One" calibration
algorithm shortening lead time and increasing production volume for newly developed TCXO with frequency range 10.0-125.0MHz and Phase-noise down
to -120dBc@100Hz offset.
|
|
Application
- Cellular
- VSAT
- Satcom
- Local Oscillator
- Test Equipment
General Specifications
| Center Frequency: | 100 MHz to 7000 Mhz |
| Output Power: | +7 dBm ±3 dB |
| Harmonic: | -35 dBc Typical |
| Spurious: | -70 dBc Typical |
| Phase Noise: | -100 dBc/Hz @ 10 KHz Offset @ 2GHz Output |
| Settling time: | 0.5ms |
| Reference In: | Internal or External |
| Power Supply: | +10VDC @ 125 mA Max |
| Operating Temperature: | -20 to +70° C |
| Package: | 2.00" x 2.00" x 0.75" Metal Housing |

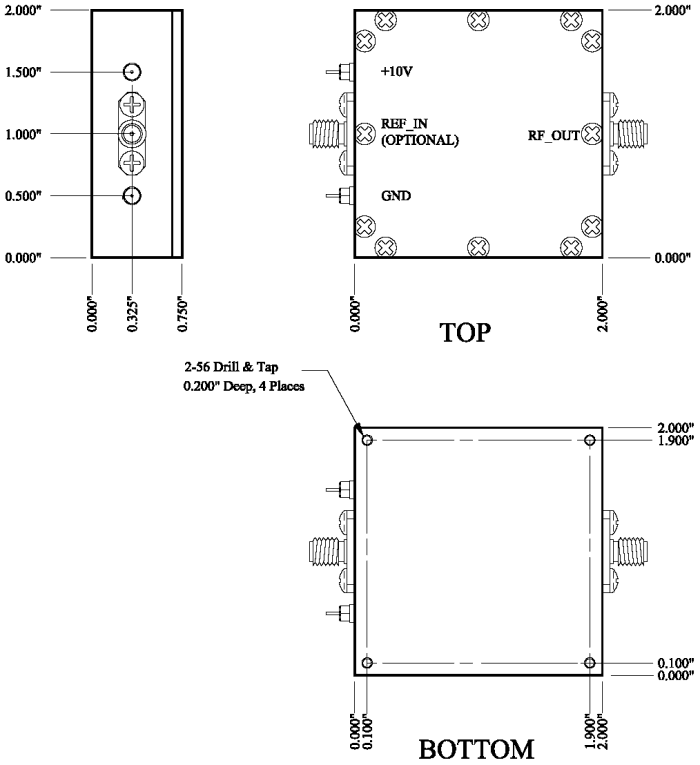

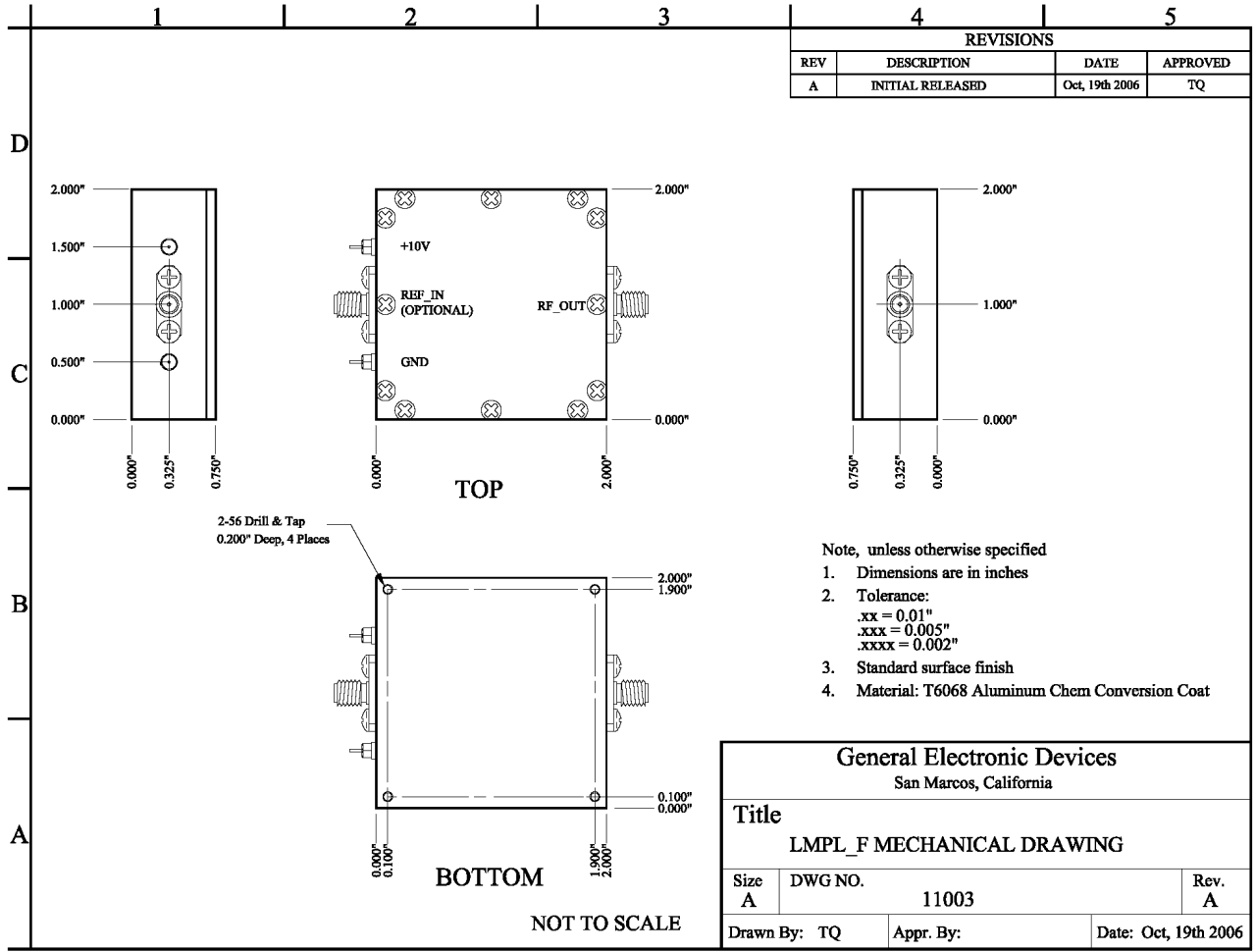

Click here to view full size high resolution drawing
or PDF File of the drawing
|
