Low Pass Filter 3GHz Pass-band revA
| Parameter | Min | Typ | Max | Units |
|---|---|---|---|---|

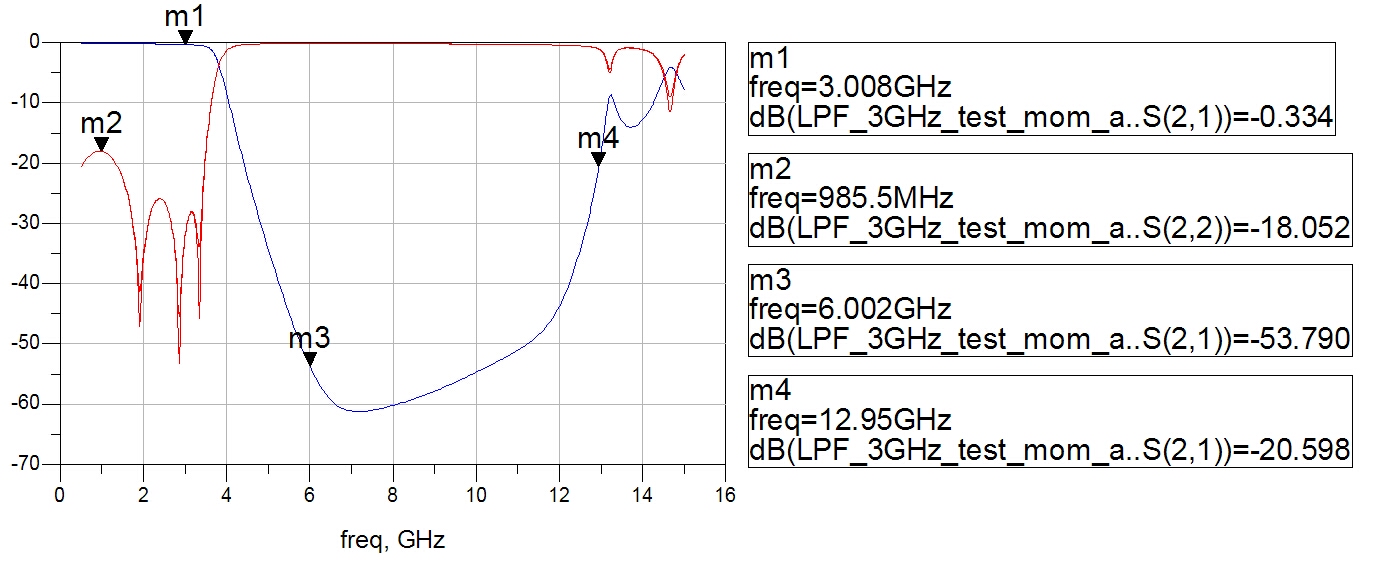

| IL@3GHz | 0.5 | 1 | dB | |
| IL@6GHz | 40 | dB | ||
| IL@9GHz | 30 | dB | ||
| RL in-band | -17 | dB | ||
| Power Handling | 5 | W | ||

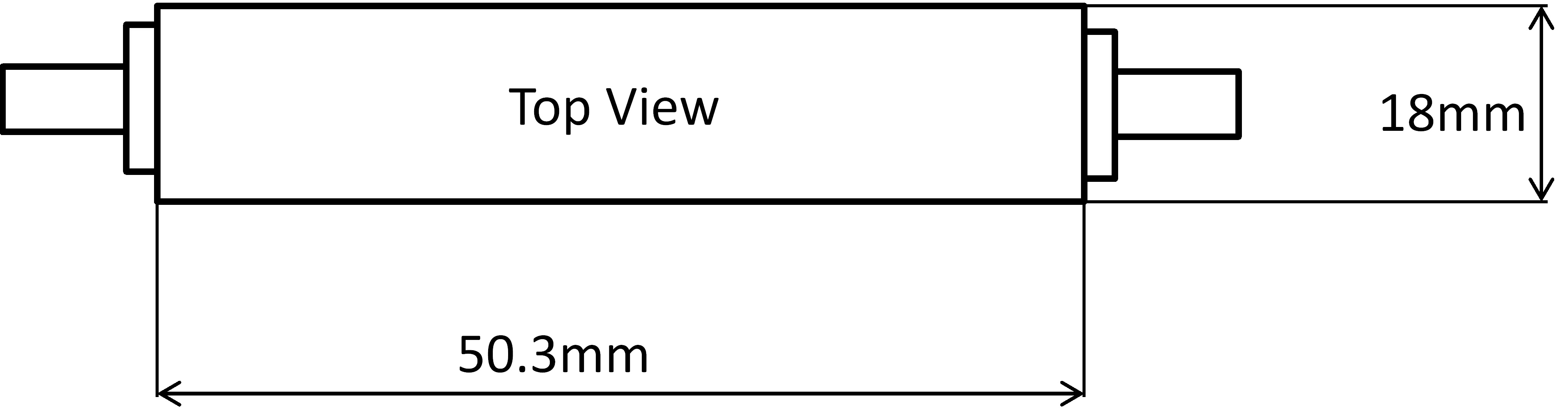

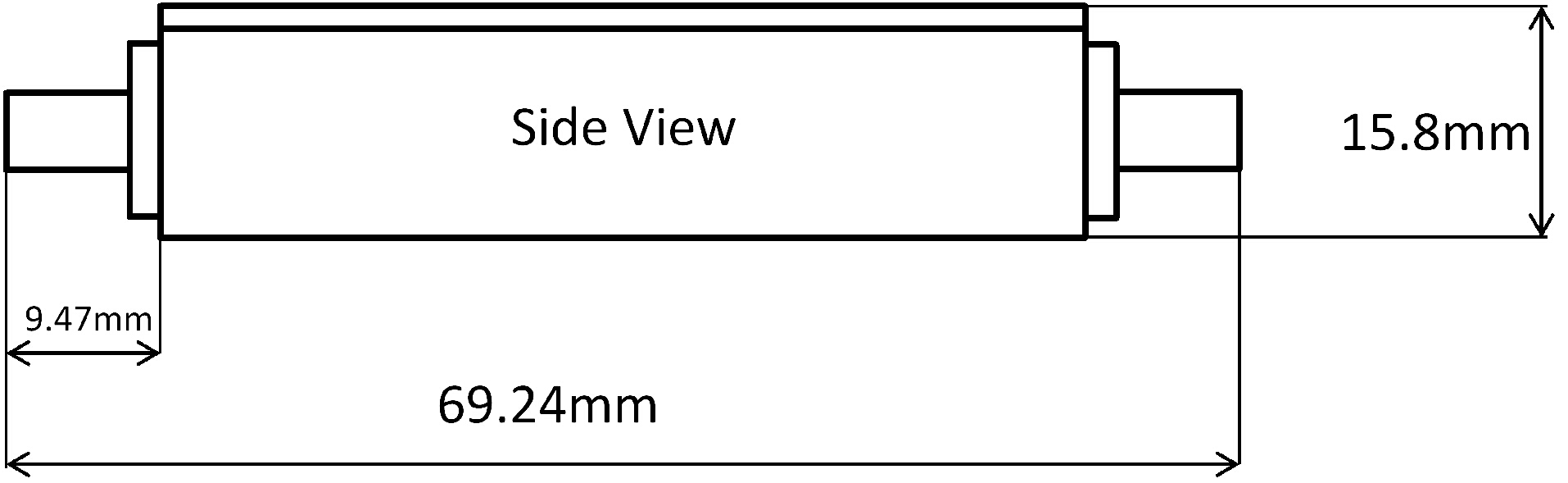

| Dimensions | 50.3x18x15.8 | mm^3 | ||
| Operating Temp. | -30 | 25 | 85 | C° |
