LMPL_GF Programmable Frequency Source

New Portable Signal Generator

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Google
Search GED www

Application

  • Cellular
  • VSAT
  • Satcom
  • Local Oscillator
  • Test Equipment

General Specifications

Frequency Range:100 MHz to 8000 MHz
Output Power:+10 dBm Typ.
Output Flatness:±3 dB
Harmonic:-30 dBc Typ.
Spurious:-70 dBc Typ.
Phase Noise @ 2GHz:-95 dBc/Hz Typ. @ 10 KHz Offset (see note)
Reference Frequency:Internal or External 10 MHz
Frequency Accuracy:Depends on Reference Frequency
Reference Out:0 dBm Typ.
DC Supply:+12VDC @400 mA Max.
Operating Temperature:      -20 to +70° C
Package:3.0"(76.2mm)x 3.0"(76.2mm) x 1.00"(25.4mm)Housing
RF in/out Connector:SMA Female

Notes: Phase noise depends on center frequency and spurious specification

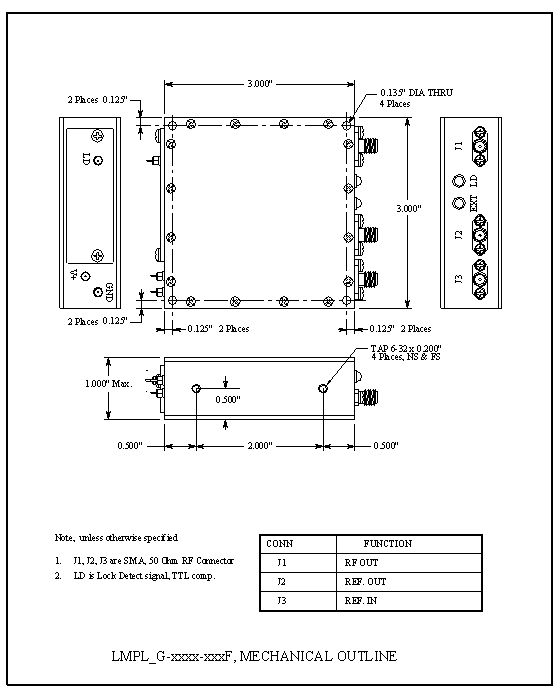

LMPL-GF Package Information
