Surface Mount Frequency Synthesizer: LMPL_B_4000_0500_00

New Portable Signal Generator

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Google
Search GED www

Application

  • Wide Frequency Range from 3500MHz to 4500MHz
  • High Harmonic Rejection
  • 20 MHz ±2.5ppm Internal Standard
  • Three-wire serial frequency control
  • Visual indicators for lock detect

Performance Specifications

Main Output (J1)
Frequency Range:3500 MHz to 4500 MHz
Resolution(Step Size):1 MHz
Output Power:+7 dBm ±2.5 dB
Harmonic:-30 dBc Typ.
Spurious:-65 dBc Typ.
Phase Noise @ 1500MHz Output(Internal Ref.):-75dBc/Hz @ 10 KHz Offset
-95dBc/Hz @ 100 KHz Offset
Frequency Accuracy:±2.5ppm
Internal Reference and Interface
Internal Ref. Frequency:20MHz
Internal Ref. Stability:±2.5ppm
Lock Indicator:TTL High for Lock
LED "LD":"ON" for normal operation
"OFF" for out of lock
DC Supply:+15VDC @ 100mA Max.
+5VDC @ 150mA Max.
Mechanical and Environmental
Operating Temperature:-10 to +60° C
Storage Temperature:-20 to +85° C

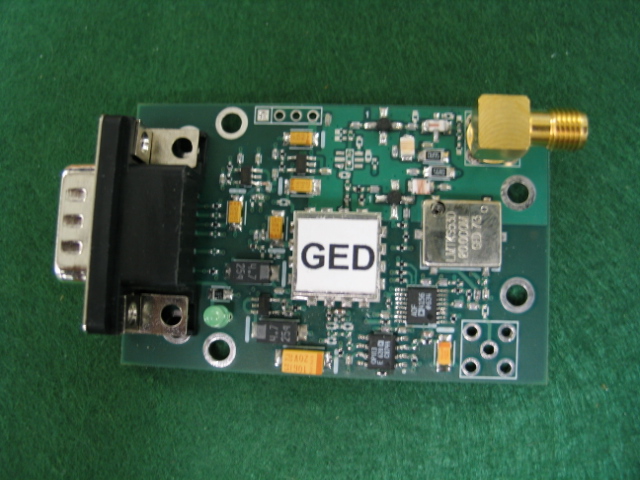

Package:1.6"x 2.5"x 0.75" PCB Assembly
Main Out:J1, SMA Right Angle Female
CNTRL & DC Supplies:DB-9 Male
