Surface Mount Frequency Synthesizer: LMPL_B_0915_0015_00

New Portable Signal Generator

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Google
Search GED www

Application

  • Frequency Range from 902.75MHz to 927.25MHz
  • High Harmonic Rejection
  • 20 MHz ±2.5ppm Internal Standard
  • Three-wire serial frequency control
  • Visual indicators for lock detect

Performance Specifications

Main Output (J1)
Frequency Range:902.75 MHz to 927.25 MHz
Resolution(Step Size):250 kHz
Output Power:+4.5 dBm ±1.5 dB
Harmonic:-25 dBc Typ.
Spurious:-65 dBc Typ.
Phase Noise @ 1500MHz Output(Internal Ref.):-85dBc/Hz @ 1 KHz Offset
-105dBc/Hz @ 10 KHz Offset
-115dBc/Hz @ 100 KHz Offset
Frequency Accuracy:±2.5ppm
Internal Reference and Interface
Internal Ref. Frequency:20MHz
Internal Ref. Stability:±2.5ppm
Lock Indicator:TTL High for Lock
LED "LD":"ON" for normal operation
"OFF" for out of lock
DC Supply:+12VDC @ 50mA Max.
+5VDC @ 125mA Max.
Mechanical and Environmental
Operating Temperature:-10 to +60° C
Storage Temperature:-20 to +85° C

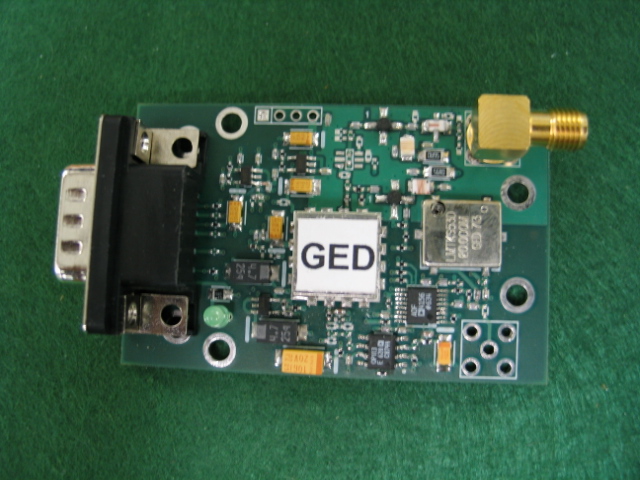

Package:1.6"x 2.5"x 0.75" PCB Assembly
Main Out:J1, SMA Right Angle Female
CNTRL & DC Supplies:DB-9 Male
LMPL-G Package Information LMPL-G Package Information
