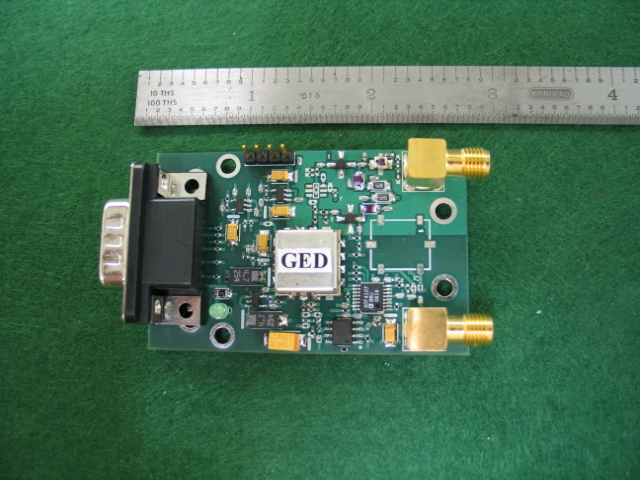

Surface Mount Frequency Synthesizer: LMPL_B

New Portable Signal Generator

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Google
Search GED www

Application

  • Wide Frequency Range
  • PCB Module Easily Attached to a Mother-Board
  • High Harmonic Rejection
  • Internal or External Reference
  • Three-wire serial control
  • Visual Indicators for lock detect

General Specifications

Frequency Range:100 MHz to 8000 Mhz
Frequency bandwidth:Up to 40%
Output Power:+10 dBm ±3 dB
Frequency Resolution:12.5 KHz up to 10 MHz
Harmonic:-30 dBc Typical
Spurious:-65 dBc Typical
Phase Noise:-110 dBc/Hz @ 100 KHz Offset
Settling time:0.5ms Typical
Reference In:Internal or External up to 100 MHz
Reference Out:0 dBm Min.
Frequency Accuracy:Depended on the reference frequency
Power Supply:+5VDC, or 5VDC and +15 VDC
Auxiliary Supply Voltage:+24 VDC (Optional)
Power Consumption:3 Watts Max
Operating Temperature:      -20 to +70° C
Control:Three wire serial, DB9 Male Connector
Package:1.6" x 2.5" x 0.75" PCB
RF in/out Connector:SMA Female

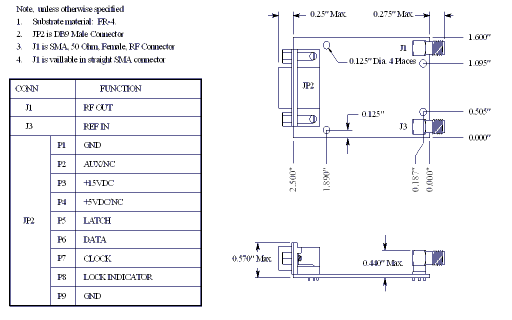

LMPL-G Package Information LMPL-G Package Information
