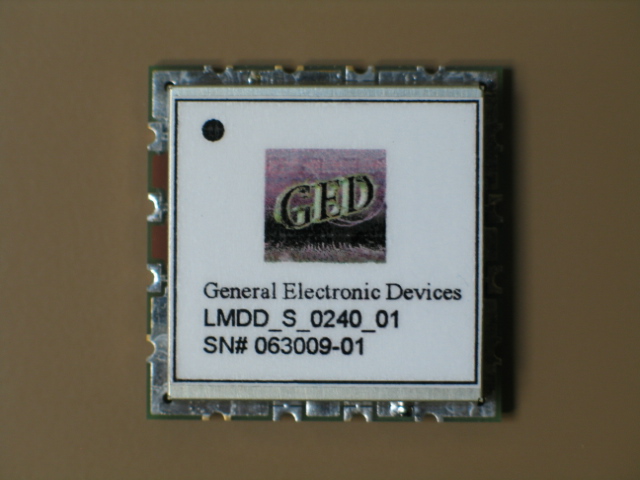

Surface Mount DDS Synthesizer: LMDD-S

New Portable Signal Generator

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Google
Search GED www

Application

  • Output Frequency from 1MHz to 100MHz
  • DDS
  • < 1Hz Resolution
  • Fast Switching
  • Surface Mount Package
  • Spurious <-40 dBc
  • Single Supply +5 VDC
  • Serial Control

General Specifications

Frequency Range:1 MHz to 100 Mhz
Output Power:0 dBm ±2 dB
Frequency Resolution:< 1Hz
Harmonic:-20 dBc Typical
Spurious:-40 dBc Typical
Phase Noise:-100 dBc/Hz @ 1KHz Offset Typical
Settling time:1 us Typical
Reference Frequency:Internal ±25ppm
Power Supply:+5VDC
Operating Temperature:      -10 to +60° C
Control:Serial
Package:1.5" x 1.5" x 0.25" Surface Mount
LMPL-G Outline Information
LMPL-S Outline Information

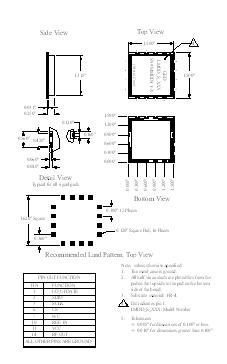

LMDD_S Outline Drawing
